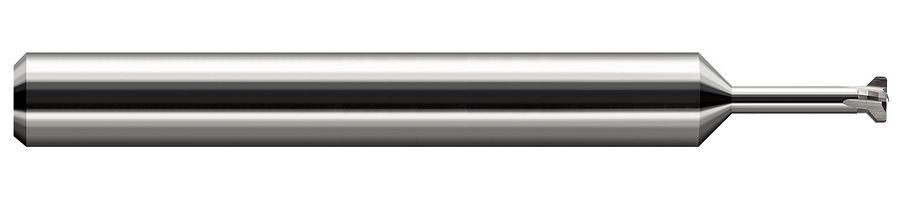

Tool # 952516
Thread Milling Cutters - Thread Relief Cutter, Holemaking & Threading
- Cutter Diameter: 0.1930"
- Length of Cut: 0.0750"
- Width (TSC): 0.0400"
- Radius 1: 0.0150" (1/64)
- Radius: 0.0150" (1/64)
- Tool #: 952516
- Quantity Available: 15
- Price: $75.70
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Undercutting
Threading
Chamfering
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)
TOOL DIMENSIONS
- Cutter Diameter 0.1930"
- Length of Cut 0.0750"
- Width (TSC) 0.0400"
- Radius 1 0.0150" (1/64)
- Radius 0.0150" (1/64)
- Neck Diameter 0.1180" (3 mm)
- Neck Length 0.5470" (35/64)
- Radial Depth Of Cut 0.0350"
- Shank Diameter 0.2500" (1/4)
- Overall Length 2.5000" (2-1/2)
- Flutes 4
- Included Angle 90
- Coating UN
- Profile Thread Relief
- Catalog Page 534
