Dovetail Cutters - Parker Hannifin O - Ring Dovetail Roughers WITHOUT Drop Hole Allowance
Specialty Profiles

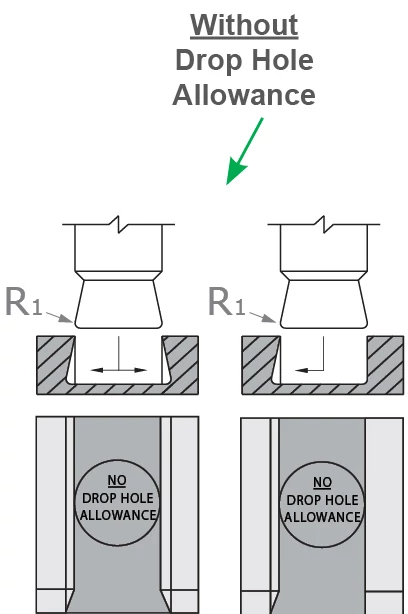

Designed for partial milling of dovetails with no drop hole allowance, these Harvey Tool Dovetail Cutters are designed to reduce stress and minimize breakage when milling O-Ring grooves without drop hole allowance.
- Designed for partial milling of dovetails with no drop hole allowance

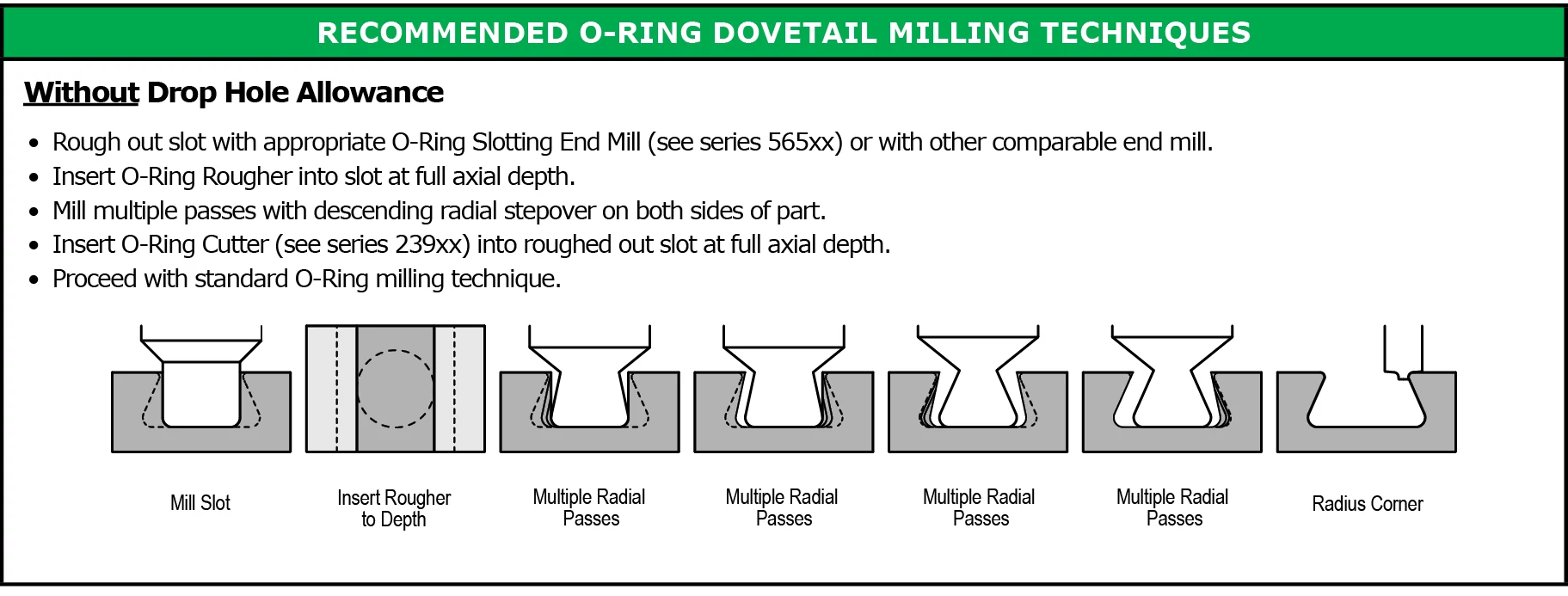

- Designed to reduce stress and minimize breakage when milling O-Ring grooves without drop hole allowance
- Over 90% increase in neck diameter thickness compared to standard O-Ring Dovetails
- 12° per side, 24° included
- 2 straight flutes
- Center cutting
- Solid carbide
- CNC ground in the USA
Dovetailing
Advanced Search
| O-RING X-SECTION | CUTTER DIA.* | LENGTH OF CUT | CORNER RADIUS | NECK DIA.** | SHANK DIA. | OAL | UNCOATED | AlTiN COATED | TiB2 COATED | Add to Cart | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 +.000"-.002" |
L2 +.020"-.000" |
R1 +.001"-.001" |
# | D2 | L1 | TOOL # | PRICE | TOOL # | PRICE | TOOL # | PRICE | ||
* Diameter measured over radaii (not to theoretical sharp corner)
** Diameter at Length of Cut
