Tool # 22331-C3
Keyseat Cutters - Square, Specialty Profiles
- Cutter Diameter: 0.2500" (1/4)
- Cutter Width: 0.0310" (1/32)
- Neck Diameter: 0.1250" (1/8)
- Neck Length: 0.3750" (3/8)
- Reach Multiple: (1.5x)
- Tool #: 22331-C3
- Quantity Available: 52
- Price: $64.00
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Undercutting
T-Slotting
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

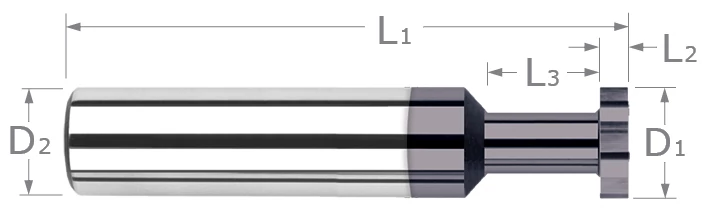

TOOL DIMENSIONS
- Cutter Diameter 0.2500" (1/4)
- Cutter Width 0.0310" (1/32)
- Neck Diameter 0.1250" (1/8)
- Neck Length 0.3750" (3/8)
- Reach Multiple (1.5x)
- Radial Depth Of Cut 0.0530"
- Type I
- Flutes 6
- Shank Diameter 0.2500" (1/4)
- Overall Length 2.5000" (2-1/2)
- Coating C3
- Profile Square
- Catalog Page 373
