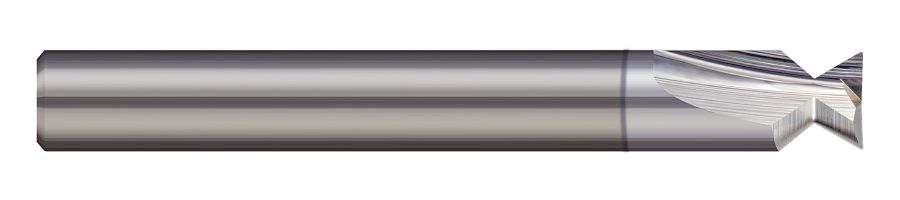

Tool # 23821-C8
Dovetail Cutters - Parker Hannifin O-Ring Dovetail Cutters WITH Drop Hole Allowance, Specialty Profiles
- O-Ring X-Section: 0.1390"
- Cutter Diameter: 0.1720" (11/64)
- Corner Radius: 0.0310" (1/32)
- Neck Diameter: 0.1160"
- Neck Radius: 0.0100"
- Tool #: 23821-C8
- Quantity Available: 28
- Price: $91.80
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Dovetailing
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)
TOOL DIMENSIONS
- O-Ring X-Section 0.1390"
- Cutter Diameter 0.1720" (11/64)
- Corner Radius 0.0310" (1/32)
- Neck Diameter 0.1160"
- Neck Radius 0.0100"
- Radius Center 0.1030"
- Shank Diameter 0.1875" (3/16)
- Overall Length 2.0000" (2)
- Included Angle 48
- Flutes 2
- Coating C8
- Profile Corner Radius
- Catalog Page 429
