Tool # 23842

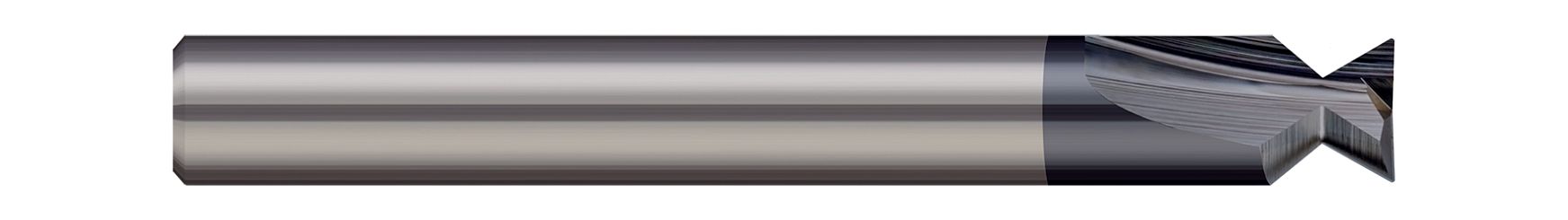

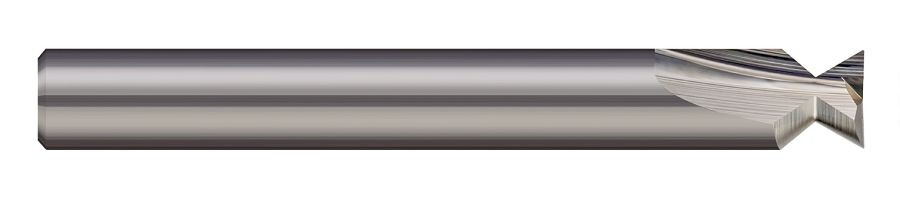

Dovetail Cutters - Parker Hannifin O-Ring Dovetail Cutters WITH Drop Hole Allowance, Specialty Profiles
- O-Ring X-Section: 0.3750" (3/8)
- Cutter Diameter: 0.4880"
- Corner Radius: 0.0930" (3/32)
- Neck Diameter: 0.3270"
- Neck Radius: 0.0200"
- Tool #: 23842
- Quantity Available: 15
- Price: $164.60
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Dovetailing
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

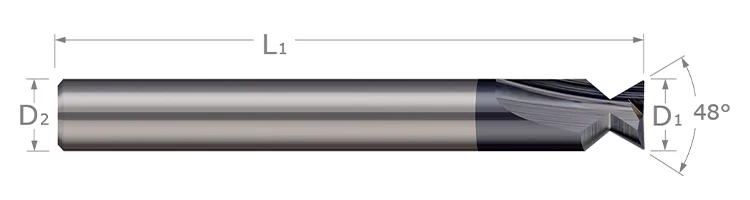

TOOL DIMENSIONS
- O-Ring X-Section 0.3750" (3/8)
- Cutter Diameter 0.4880"
- Corner Radius 0.0930" (3/32)
- Neck Diameter 0.3270"
- Neck Radius 0.0200"
- Radius Center 0.2990"
- Shank Diameter 0.5000" (1/2)
- Overall Length 3.0000" (3)
- Included Angle 48
- Flutes 2
- Coating UN
- Profile Corner Radius
- Catalog Page 429
