Tool # 45028
Corner Rounding End Mills - 3 Flute - Flared - Carbide Tipped, Specialty Profiles
- Radius: 0.4370" (7/16)
- Pilot Diameter: 0.4060" (13/32)
- Head Diameter: 1.3750" (1-3/8)
- Shank Diameter: 1.0000" (1)
- Overall Length: 4.0000" (4)
- Tool #: 45028
- Quantity Available: 13
- Price: $292.60
- Customer Rating:
Resources
SIM Files / Tool Libraries
Other Resources
OPTIMIZED FOR
Operations
Deburring
Corner Rounding
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

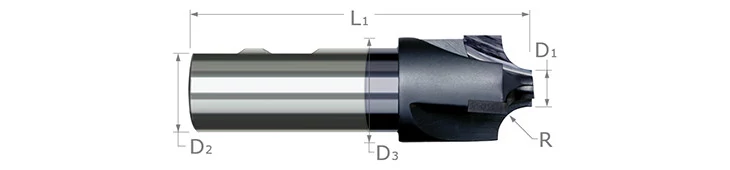

TOOL DIMENSIONS
- Radius 0.4370" (7/16)
- Pilot Diameter 0.4060" (13/32)
- Head Diameter 1.3750" (1-3/8)
- Shank Diameter 1.0000" (1)
- Overall Length 4.0000" (4)
- Coating UN
- Length of Cut 0.4430"
- Flutes 3
- Profile Corner Rounder
- Pilot Flare 5
- Shoulder Flare 5
- Catalog Page 414
