Tool # 736970

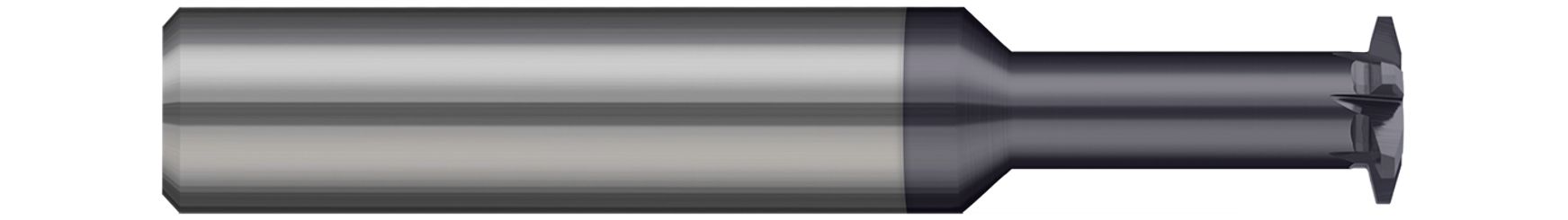

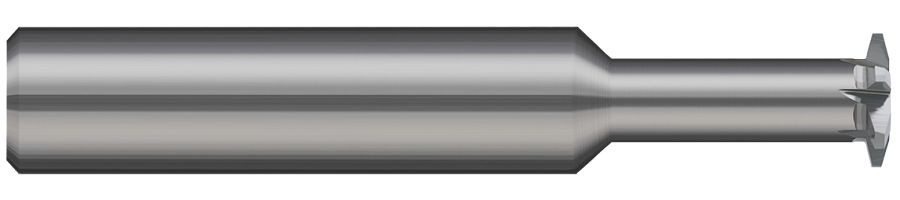

Thread Milling Cutters - Single Form - ACME, Holemaking & Threading
- Thread Size: 1/2-10
- Cutter Diameter: 0.3600"
- Neck Diameter: 0.2100"
- Max Depth of Thread: 0.6250" (5/8)
- Flutes: 4
- Tool #: 736970
- Quantity Available: 9
- Price: $71.70
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Threading
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

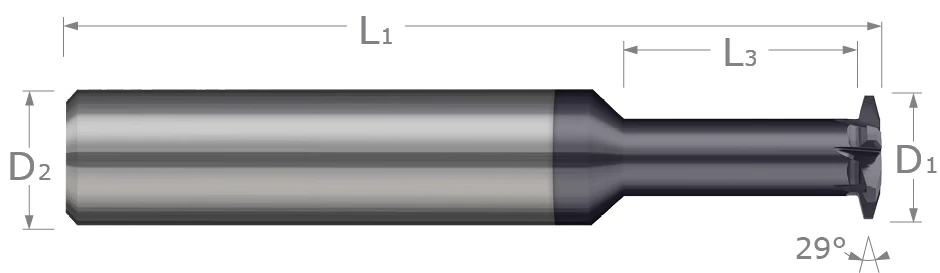

TOOL DIMENSIONS
- Thread Size 1/2-10
- Cutter Diameter 0.3600"
- Neck Diameter 0.2100"
- Max Depth of Thread 0.6250" (5/8)
- Flutes 4
- Shank Diameter 0.3750" (3/8)
- Overall Length 2.5000" (2-1/2)
- Length of Cut 0.0640"
- Included Angle 29
- Coating UN
- Profile Single Form
- Catalog Page 521
