Tool # 748108

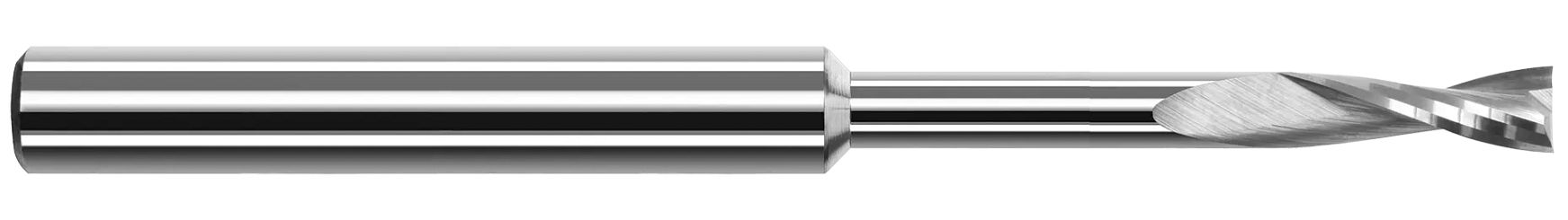

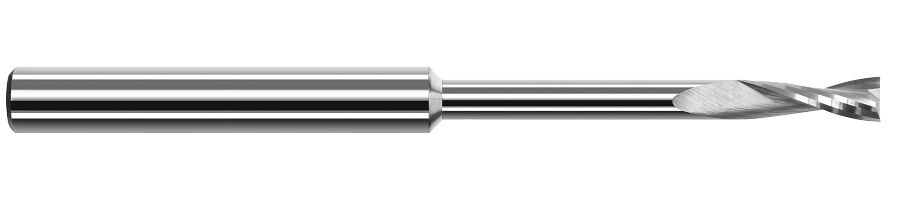

End Mills for Plastics - Square Upcut - Long Reach - 2 Flute, Material Specific End Mills
- Cutter Diameter: 0.1250" (1/8)
- Length of Cut: 0.3750" (3/8)
- Overall Reach: 1.2500" (1-1/4)
- Reach Multiple: (10x)
- Shank Diameter: 0.1250" (1/8)
- Tool #: 748108
- Quantity Available: 11
- Price: $50.10
- Customer Rating:
Resources
SIM Files / Tool Libraries
Other Resources
OPTIMIZED FOR
Operations
Slotting
Plunging
Roughing
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

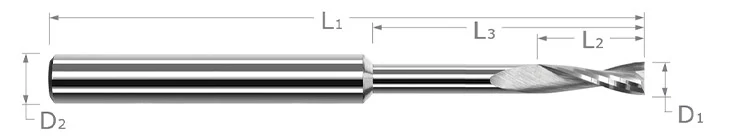

TOOL DIMENSIONS
- Cutter Diameter 0.1250" (1/8)
- Length of Cut 0.3750" (3/8)
- Overall Reach 1.2500" (1-1/4)
- Reach Multiple (10x)
- Shank Diameter 0.1250" (1/8)
- Overall Length 3.0000" (3)
- Flutes 2
- Coating UN
- Profile Square
- Catalog Page 256
