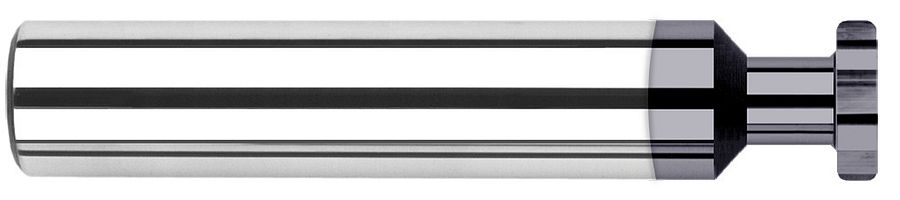

Tool # 776850-C3
Keyseat Cutters - Corner Radius, Specialty Profiles
- Cutter Diameter: 0.3125" (5/16)
- Cutter Width: 0.0930" (3/32)
- Corner Radius: 0.0100"
- Neck Diameter: 0.1100" (2.8 mm)
- Neck Length: 0.1870" (3/16)
- Tool #: 776850-C3
- Quantity Available: 12
- Price: $111.10
- Customer Rating:
Resources
SIM Files / Tool Libraries
Other Resources
OPTIMIZED FOR
Operations
Undercutting
T-Slotting
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)
TOOL DIMENSIONS
- Cutter Diameter 0.3125" (5/16)
- Cutter Width 0.0930" (3/32)
- Corner Radius 0.0100"
- Neck Diameter 0.1100" (2.8 mm)
- Neck Length 0.1870" (3/16)
- Reach Multiple (0.5x)
- Radial Depth Of Cut 0.0910"
- Type II
- Flutes 6
- Shank Diameter 0.3125" (5/16)
- Overall Length 2.5000" (2-1/2)
- Coating C3
- Profile Corner Radius
- Catalog Page 388
