Tool # 846355

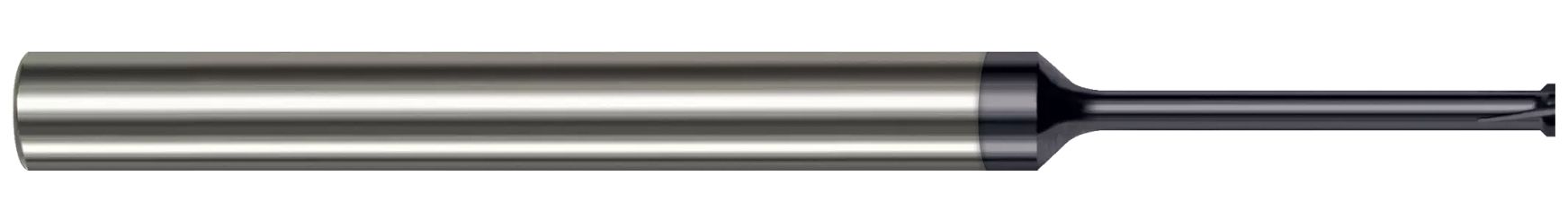

Back Deburring Mill, Specialty Profiles
- Head Diameter: 0.0550" (1.4 mm)
- Axial Length Of Cut: 0.0045"
- Neck Diameter: 0.0430" (1.1 mm)
- Neck Length: 0.1870" (3/16)
- Chamfer Center Length: 0.0423"
- Tool #: 846355
- Quantity Available: 11
- Price: $67.70
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Undercutting
Deburring
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

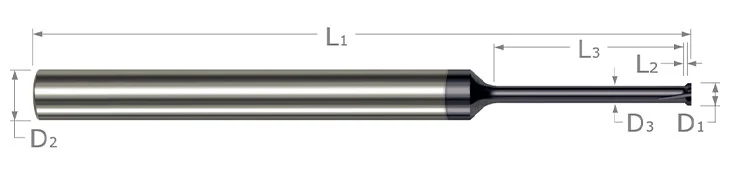

TOOL DIMENSIONS
- Head Diameter 0.0550" (1.4 mm)
- Axial Length Of Cut 0.0045"
- Neck Diameter 0.0430" (1.1 mm)
- Neck Length 0.1870" (3/16)
- Chamfer Center Length 0.0423"
- Chamfer Center Diameter 0.0515"
- Flutes 4
- Shank Diameter 0.1250" (1/8)
- Overall Length 2.0000" (2)
- Included Angle 90
- Coating UN
- Profile Back Chamfer
- Catalog Page 368
