Tool # 890316-C3
Thread Milling Cutters - Single Form - Metric, Holemaking & Threading
- Thread Size: M1.6
- Cutter Diameter: 1.160 mm
- Neck Diameter: 0.696 mm
- Max Depth of Thread: 2.100 mm
- Flutes: 2
- Tool #: 890316-C3
- Quantity Available: 5
- Price: $92.80
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Threading
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

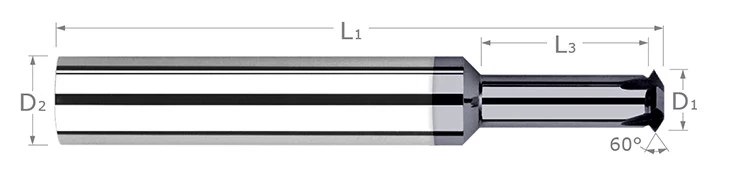

TOOL DIMENSIONS
- Thread Size M1.6
- Cutter Diameter 1.160 mm
- Neck Diameter 0.696 mm
- Max Depth of Thread 2.100 mm
- Flutes 2
- Shank Diameter 3.000 mm
- Overall Length 38.000 mm
- Length of Cut 0.268 mm
- Included Angle 60
- Coating C3
- Profile Single Form
- Catalog Page 520
