Tool # 949716-C8

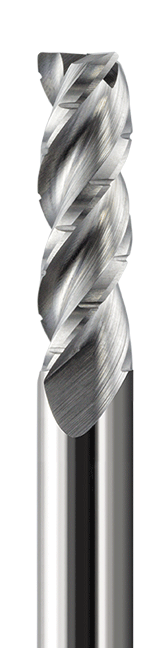

Variable Helix End Mills for Aluminum Alloys - Corner Radius - Long Reach, Stub Flute, Material Specific End Mills
- Cutter Diameter: 0.2500" (1/4)
- Length of Cut: 0.3750" (3/8)
- Corner Radius: 0.0100"
- Overall Reach: 3.0000" (3)
- Reach Multiple: (12x)
- Tool #: 949716-C8
- Quantity Available: 6
- Price: $89.70
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Slotting
Plunging
3D Contouring
Roughing
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)
TOOL DIMENSIONS
- Cutter Diameter 0.2500" (1/4)
- Length of Cut 0.3750" (3/8)
- Corner Radius 0.0100"
- Overall Reach 3.0000" (3)
- Reach Multiple (12x)
- Flutes 3
- Shank Diameter 0.2500" (1/4)
- Overall Length 6.0000" (6)
- Coating C8
- Profile Corner Radius
- Catalog Page 221
