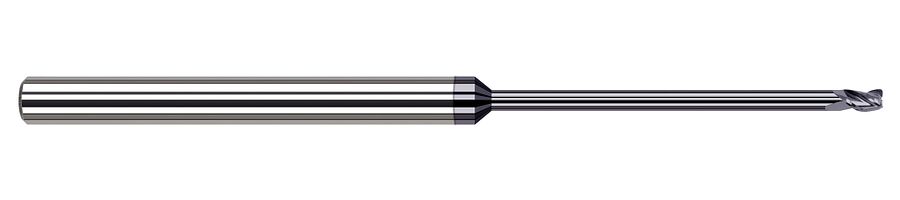

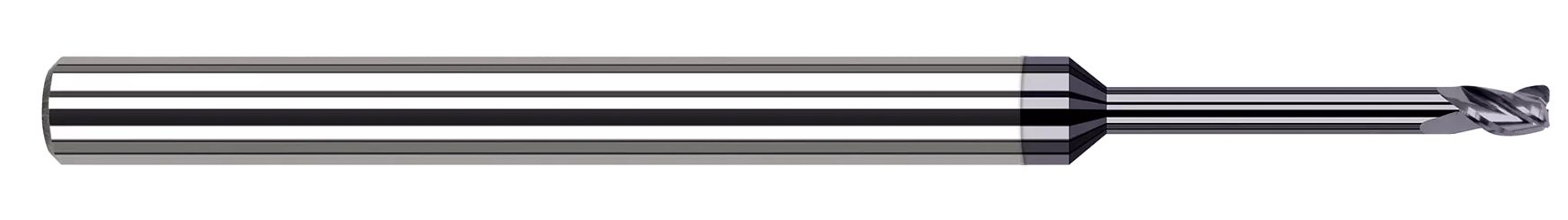

Tool # 975533-C3
Variable Helix End Mills for Medium Alloy Steels - Corner Radius - Long Reach, Stub Flute, Material Specific End Mills
- Cutter Diameter: 1.500 mm
- Length of Cut: 2.200 mm
- Corner Radius: 0.200 mm
- Overall Reach: 24.000 mm
- Flutes: 3
- Tool #: 975533-C3
- Quantity Available: 16
- Price: $70.50
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Slotting
Plunging
3D Contouring
Roughing
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

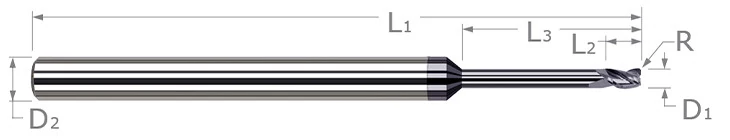

TOOL DIMENSIONS
- Cutter Diameter 1.500 mm
- Length of Cut 2.200 mm
- Corner Radius 0.200 mm
- Overall Reach 24.000 mm
- Flutes 3
- Shank Diameter 4.000 mm
- Overall Length 63.000 mm
- Coating C3
- Profile Corner Radius
- Catalog Page 188
