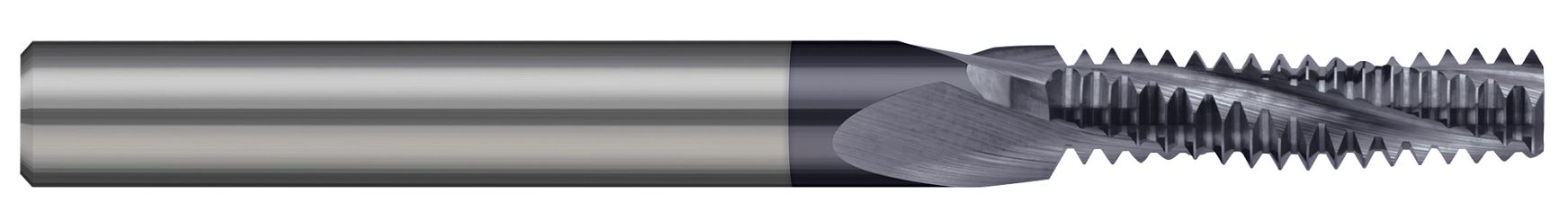

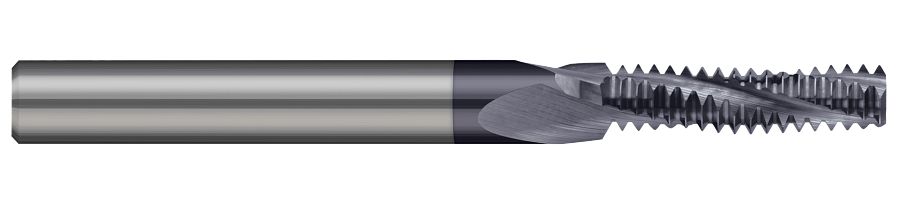

Tool # 987176-C3

Thread Milling Cutters - Multi-Form - Long Flute - UN Threads, Holemaking & Threading
tool-details-987176-C3
tool-details-987176-C3
tool-details-987176-C3
TOOL # 987176-C3
  • Thread Size: 7/16-20
  • Cutter Diameter: 0.3500"
  • Length of Cut: 1.3000"
  • Flutes: 4
  • Shank Diameter: 0.3750" (3/8)
see more dimensions
  • Tool #: 987176-C3
  • Quantity Available: 8
  • Price: $281.90
  • Customer Rating:
Resources
OPTIMIZED FOR
Operations
Threading Threading
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel Exotic Metal Titanium Plastic Wood Composites Graphite Hardened Alloys Green (unfired)

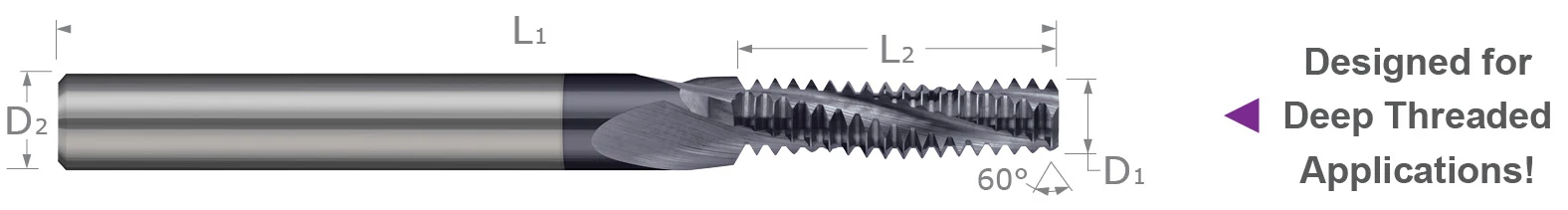

TOOL DIMENSIONS
  • Thread Size 7/16-20
  • Cutter Diameter 0.3500"
  • Length of Cut 1.3000"
  • Flutes 4
  • Shank Diameter 0.3750" (3/8)
  • Included Angle 60
  • Overall Length 3.5000" (3-1/2)
  • Coating C3
  • Profile Multi-Form
  • Catalog Page 532
