Tool # 988718-C6

Variable Helix End Mills for High Temp Alloys - Ball - Long Reach, Stub Flute, Material Specific End Mills
tool-details-988718-C6
tool-details-988718-C6
tool-details-988718-C6
TOOL # 988718-C6
  • Cutter Diameter: 0.800 mm
  • Length of Cut: 1.200 mm
  • Overall Reach: 4.000 mm
  • Reach Multiple: (5x)
  • Flutes: 4
see more dimensions
  • Tool #: 988718-C6
  • Quantity Available: 15
  • Price: $71.10
  • Customer Rating:
Resources
OPTIMIZED FOR
Operations
Slotting Slotting
Plunging Plunging
3D Contouring 3D Contouring
Roughing Roughing
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel Exotic Metal Titanium Plastic Wood Composites Graphite Hardened Alloys Green (unfired)

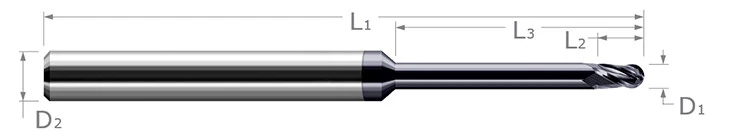

TOOL DIMENSIONS
  • Cutter Diameter 0.800 mm
  • Length of Cut 1.200 mm
  • Overall Reach 4.000 mm
  • Reach Multiple (5x)
  • Flutes 4
  • Shank Diameter 4.000 mm
  • Overall Length 50.000 mm
  • Coating C6
  • Profile Ball
  • Catalog Page 145
