Tool # RRH0940

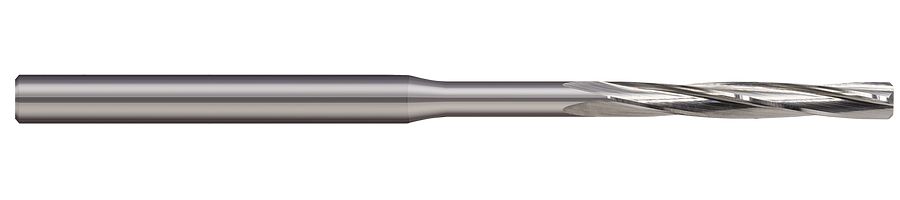

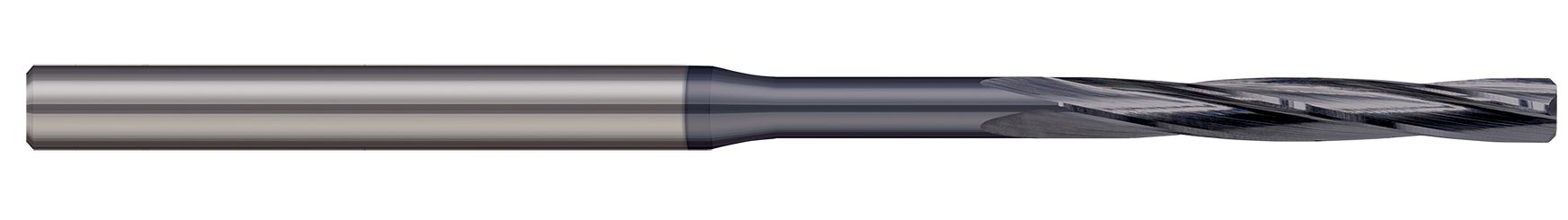

Miniature Reamers - Right Hand Spiral, Holemaking & Threading
- Reamer Diameter: 0.0940" (2.4 mm)
- Margin Length: 0.6870" (11/16)
- Overall Reach: 1.2500" (1-1/4)
- Chamfer Length: 0.0085"
- Flutes: 4
- Tool #: RRH0940
- Quantity Available: 16
- Price: $38.40
- Customer Rating:
Resources
SIM Files / Tool Libraries
Other Resources
OPTIMIZED FOR
Operations
Reaming
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

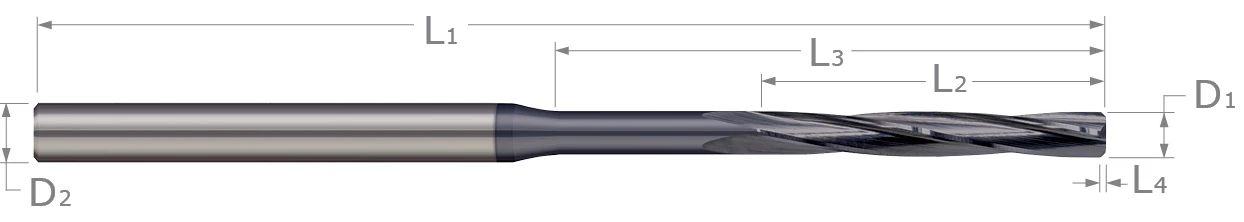

TOOL DIMENSIONS
- Reamer Diameter 0.0940" (2.4 mm)
- Margin Length 0.6870" (11/16)
- Overall Reach 1.2500" (1-1/4)
- Chamfer Length 0.0085"
- Flutes 4
- Shank Diameter 0.1250" (1/8)
- Overall Length 2.5000" (2-1/2)
- Coating UN
- Profile Reamer
- Catalog Page 510
