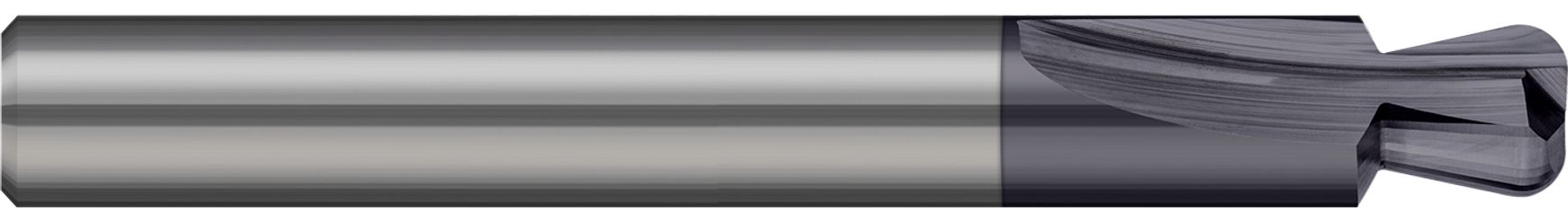

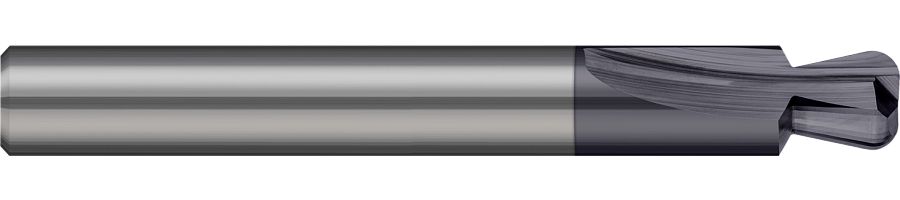

Tool # 715242-C3
Dovetail Cutters - Parker Hannifin O-Ring Dovetail Cutters WITHOUT Drop Hole Allowance - Rougher, Specialty Profiles
- O-Ring X-Section: 0.3750" (3/8)
- Cutter Diameter: 0.3150" (8 mm)
- Length of Cut: 0.3230"
- Corner Radius: 0.0930" (3/32)
- Neck Diameter: 0.2210"
- Tool #: 715242-C3
- Quantity Available: 12
- Price: $138.00
- Customer Rating:
Resources
SIM Files / Tool Libraries
Other Resources

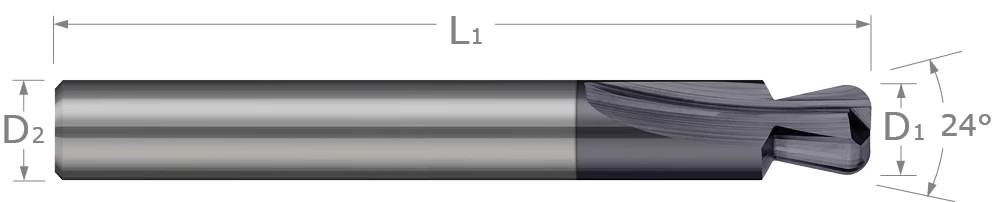

TOOL DIMENSIONS
- O-Ring X-Section 0.3750" (3/8)
- Cutter Diameter 0.3150" (8 mm)
- Length of Cut 0.3230"
- Corner Radius 0.0930" (3/32)
- Neck Diameter 0.2210"
- Shank Diameter 0.3750" (3/8)
- Overall Length 2.5000" (2-1/2)
- Coating C3
- Flutes 2
- Profile Dovetail
- Catalog Page 431
